The Vertex-Transitive Graphs on 11 Vertices

Last update=20 May, 2006

hrule

There are 7 connected vertex-transitive graphs on 11 vertices. Four of them are shown here. The order of the automorphism group is given in square brackets in each window's title.

Notation:

  • Cn means the cycle of length n
  • Cn+ means the cycle of length n with diagonals
  • Cn(k)  means the cycle of length n with chords of length k
  • ~G   means the complement of G
  • 2G   means two disjoint copies of G

The graphs not shown here are:

VT11_1 = C11
VT11_6 = ~C11
VT11_7 = K11

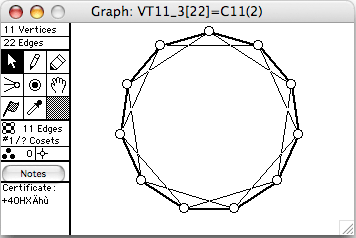

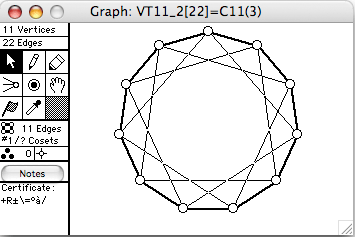

VT11_2 VT11_3

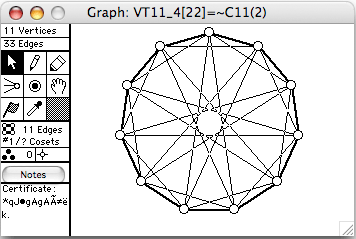

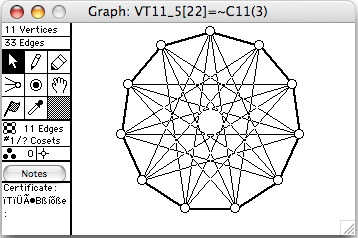

VT11_4 VT11_5
